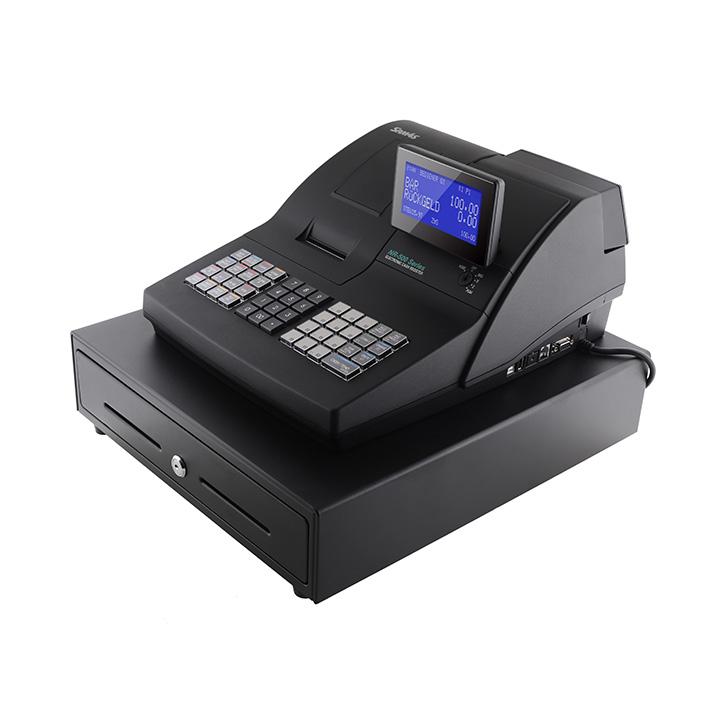

SAM4S NR-510 Thermal Single Station (Raised Key Board)
Call (03)9471 4666 or
Email: solutions@expresspos.com.au for a free quote
The Price indicated is without Programming.We can set up this register according to your requirements/needs with extra Charge.
Product Details
NR-500 series is a powerful solution suited for a wide range of retail and hospitality operations. This model is convenient to use as it provides the operator a high-visible display and other advance features.
- Mid Range Single Station Cash Register
- Wide Multi Line Graphic Display
- 16 Char. x 2 Line LCD Rear Display
- 90-Key Flat or 48 Key Raised Keyboard
- Electronic Journal
- Easy Data Back up, Restore and Report
- Ethernet/USB/RS232 PC Communication
- SD Backup, Restore & Reporting
- RS232 for Kitchen Printing, Security or Scanning
Specifications
- Printer :1 Station Direct Thermal Type
- Printing Speed (Max.) :up to 18 Lines/sec
- Paper Width:57 mm +/- 0.5 mm
- Paper Roll Diameter
- Max Ø 83.0 mm
- Paper Supply Method: Easy Paper Loading,
- Keyboards:NR-510: 90 Key Flat Keyboard
- Display Operator: 192 x 64 Graphic LCD
- Customer: 16 Character x 2 Line LCD
- Drawer :Metal drawer 4B/8C with media Slots
- I/O Ports
- 2 x RS232 (1 x DB9F, 1 x RJ45)
- 1 x USB port (Software Configurable to host/device)
- 1 x Ethernet (for PC Comms)
Memory
FlashROM: 2 MByte (internal CPU) for Firmware
RAM: 8 MBits SRAM
RAM: 8 MBits SRAM
Memory Protection
60 Days
Memory Configuration
up to 8000 PLU’s
Max. 99 Clerks
Max. 99 Groups
Soft (Restaurant Style) or Hard (Service Station Style) Check (Account) System
Max. 2 Price Levels
Max. 99 Mix & Match
Max. 15000 Line Electronic Journal
(Maximums depends on Memory sharing choices)
Max. 99 Clerks
Max. 99 Groups
Soft (Restaurant Style) or Hard (Service Station Style) Check (Account) System
Max. 2 Price Levels
Max. 99 Mix & Match
Max. 15000 Line Electronic Journal
(Maximums depends on Memory sharing choices)
OS Functions
32 Character per Line Logo Description (6 Lines Heading + 6 Lines Footing)
24 Character Description
14 Digit PLU Number
5 Modifier Levels
10 Macro keys
10 Tender Keys
9 Auto Cash Keys
3 Keyboard Levels Inventory Item
Condiment Item
Table Management or Clerk Interrupt
Training Mode
6 Digit Clerk Password
Graphic Logo on the Receipt Heading and Footing
Maximum 100 Line Record per Transaction
24 Character Description
14 Digit PLU Number
5 Modifier Levels
10 Macro keys
10 Tender Keys
9 Auto Cash Keys
3 Keyboard Levels Inventory Item
Condiment Item
Table Management or Clerk Interrupt
Training Mode
6 Digit Clerk Password
Graphic Logo on the Receipt Heading and Footing
Maximum 100 Line Record per Transaction
Software Utilities: Programming Utility Software (Ethernet/Serial/USB)
Power Supply: AC 230V +/- 10%
Power Consumption: 10 W
External Dimensions (WxDxH): 400 x 450 x 266 mm
Weight: 13 Kg
| Weight | 13 kg |
|---|---|
| Dimensions | 54 × 51 × 36 cm |
